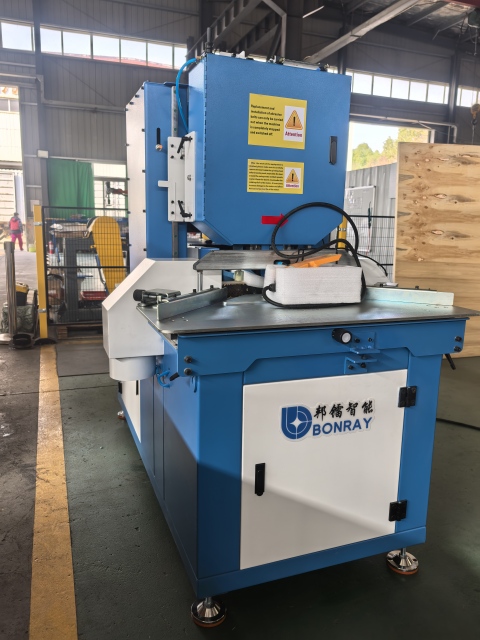

Three-Head Automatic Corner Grinding Machine | High-Efficiency Weld Seam Finishing for Frame Structures

Name: Three-Head Automatic Corner Grinding Machine | High-Efficiency Weld Seam Finishing for Frame Structures
Brand: www.xydpolishing.com
SKU: JY-EG 3-50
Availability: InStock
Rating: 5 (1 reviews)

No.JY-EG 3-50

The JY-Three-Head Automatic Corner Grinding Machine is designed for weld seam finishing on frame-structure workpieces. It can simultaneously grind the upper, lower, and side surfaces within 100mm. Equipped with a self-developed multi-task controller and servo-driven system, the machine offers automatic clamping and precise depth control, ensuring high-quality and consistentTheSPMJ-03 Three-Head Automatic Grinding Machineis designed for simultaneous grinding of upper surfaces, lower surfaces, and edges. Controlled by theBR2C multi-task system , it ensuresautomated clamping and precise grinding , replacing manual labor withhigher efficiency and consistency . Equipped withthree grinding heads , it supportsfive grinding configurations , making it highly versatile. Optionaldust collectionminimizes environmental impact. Ideal formetal parts, wooden furniture, kitchenwar welding surface results.

Get A Quote

Add to Quote List View Quote List

SPECIFICATION

Specification	Details
Model	JY-EG 3-50
Power	8 kW
Voltage	3-phase 380V
Frequency	50~60 Hz
Machine Dimensions (L×W×H)	1850 × 1200 × 1800 mm
Weight	Approx. 650 kg

Product Introduction

The Three-Head Automatic Corner Grinding Machine is specifically designed for grinding weld seams on frame-structure workpieces. It supports simultaneous grinding of the upper surface (≤100 mm), lower surface (≤100 mm), and side surfaces (≤100 mm). The entire process—from clamping the workpiece to completing the grinding—operates fully automatically.

Easy Operation

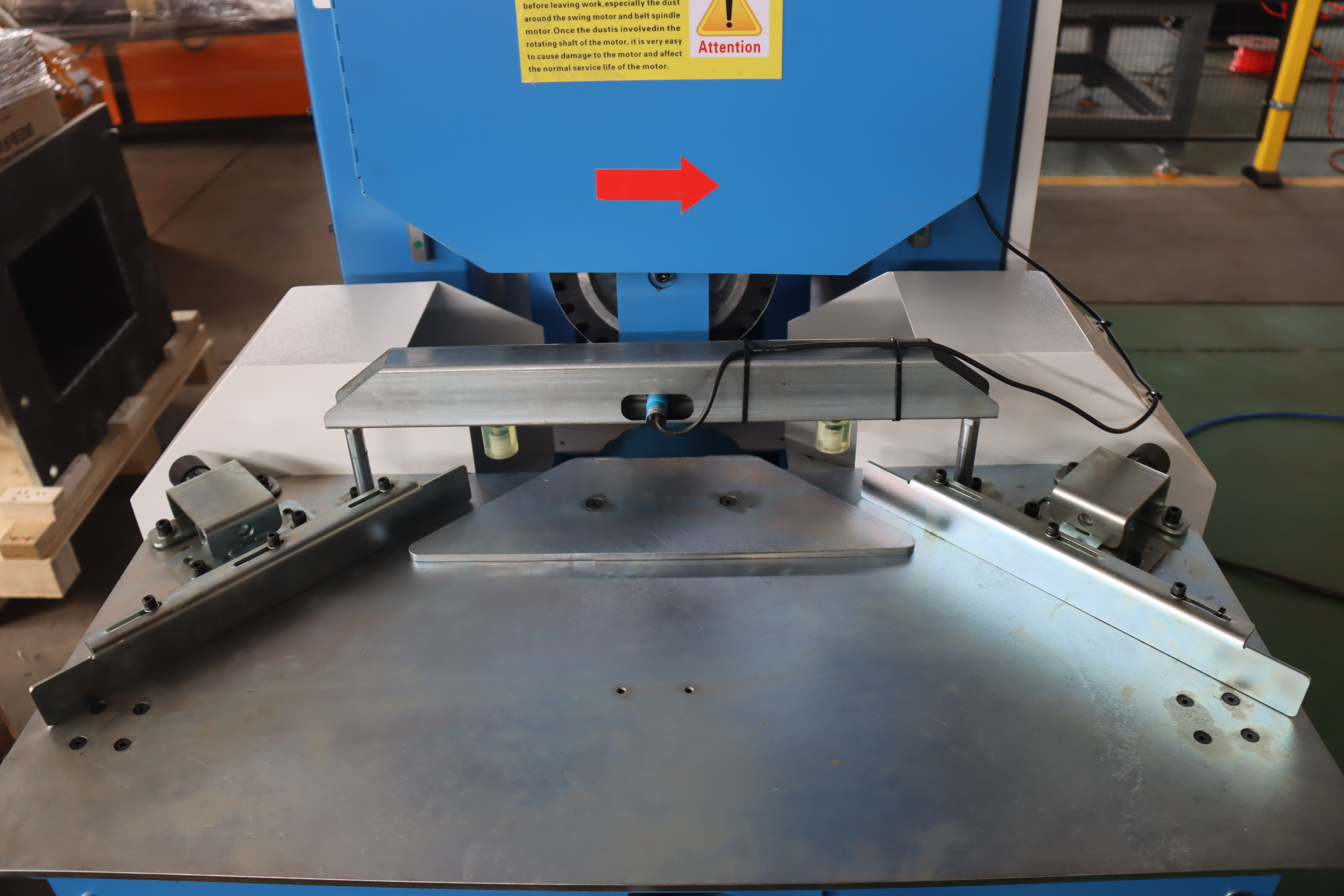

Workers only need to place the workpiece in the fixed position. No professional grinding skills or physical strength are required, significantly reducing labor costs compared with manual grinding.

Fully Automated Grinding

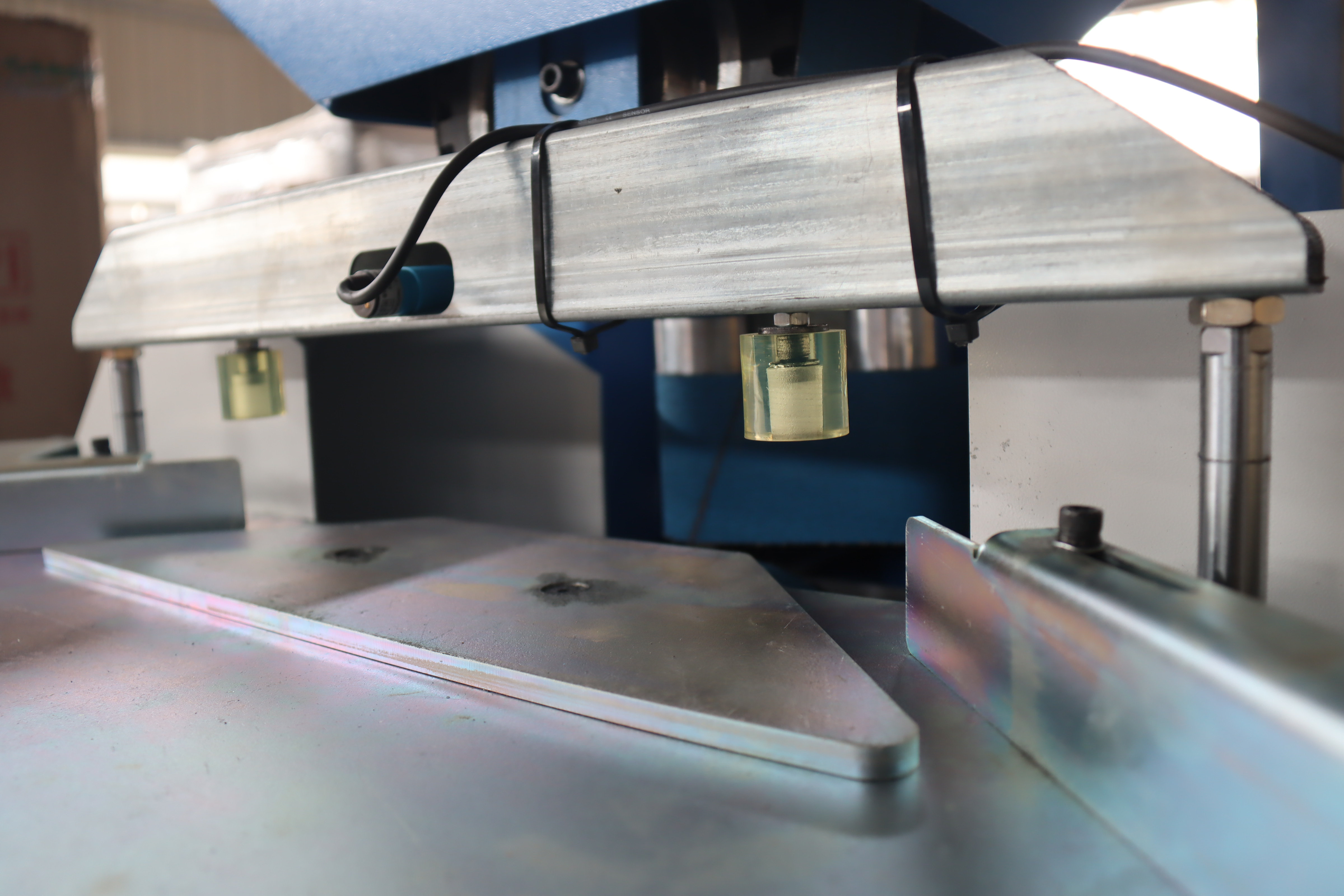

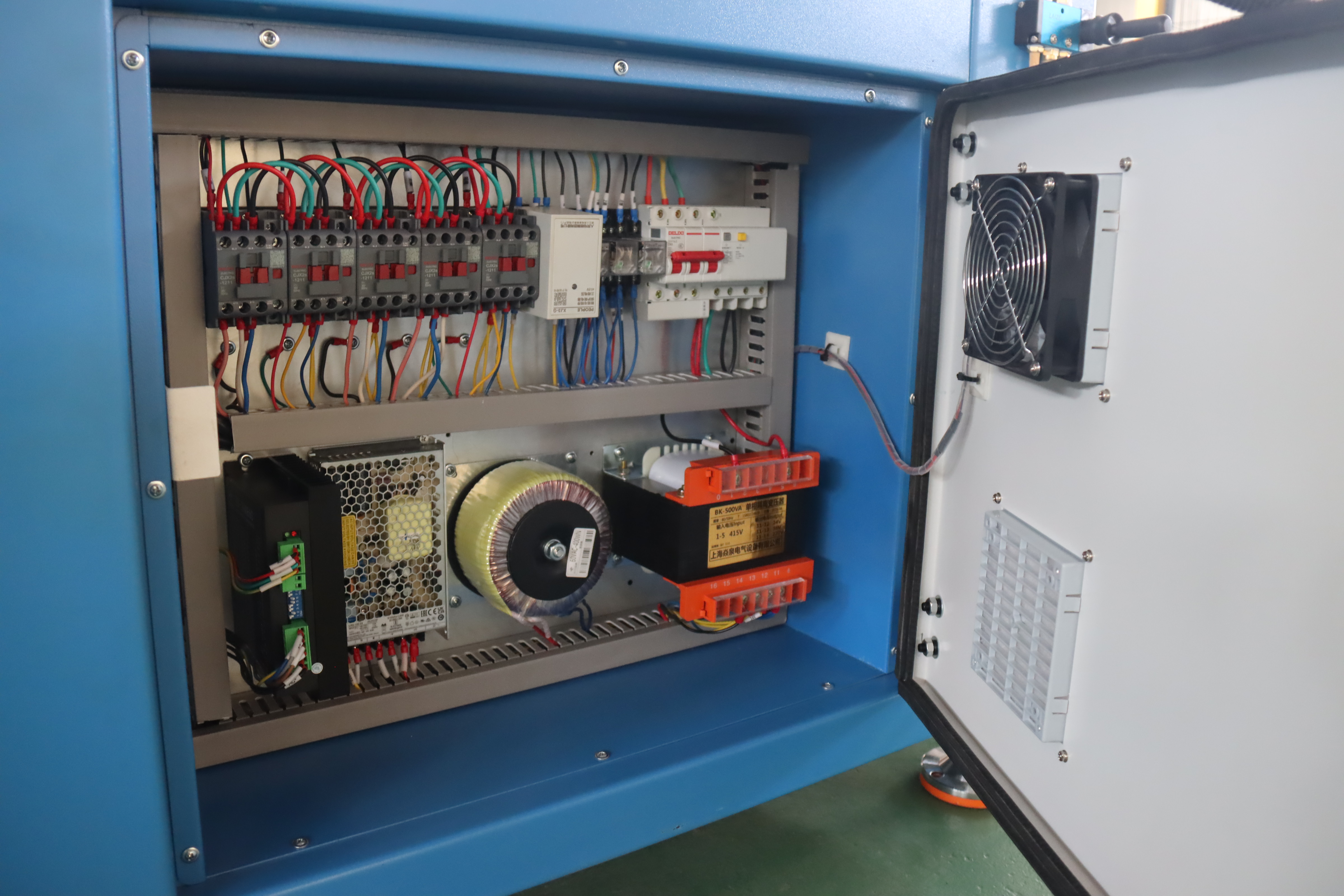

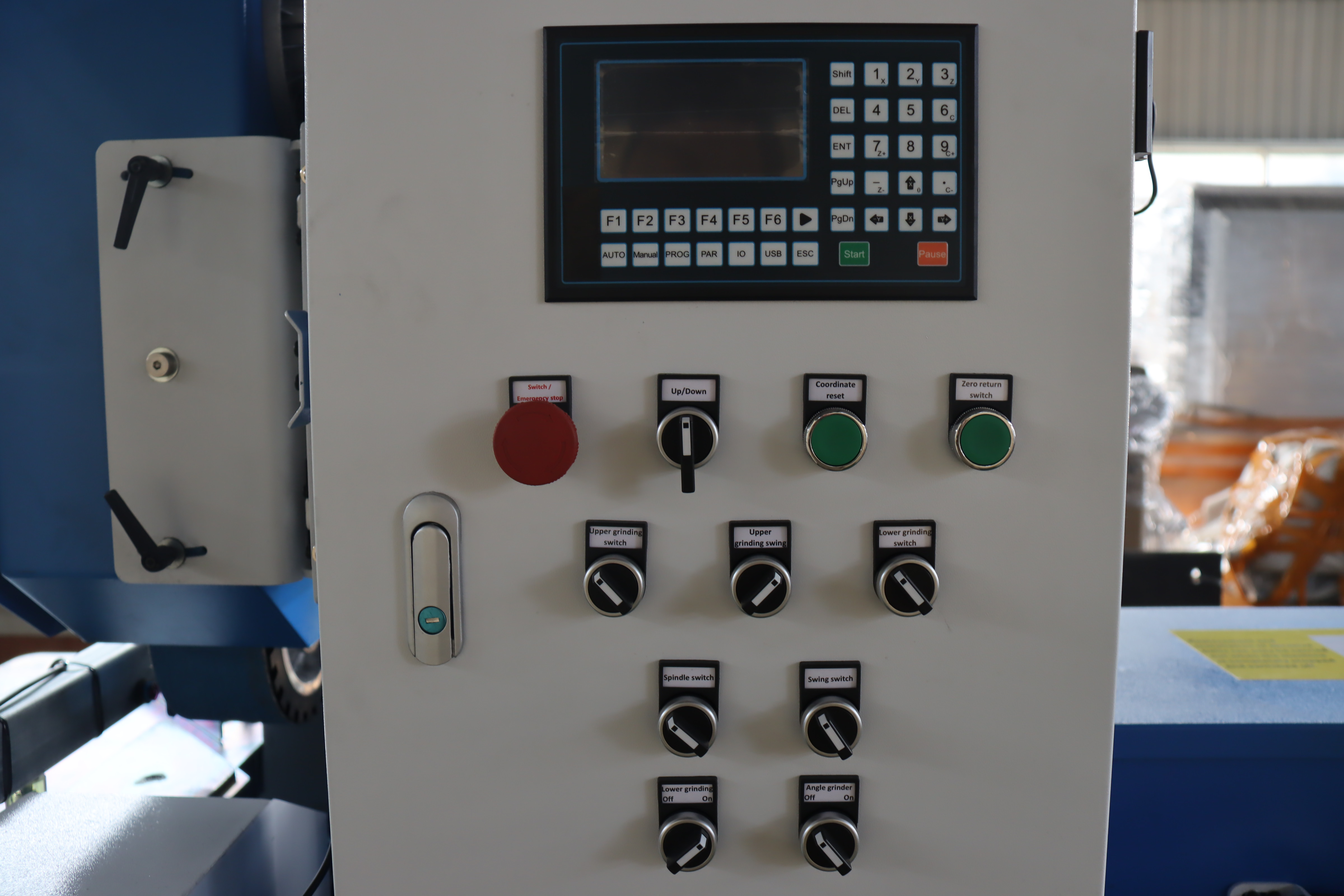

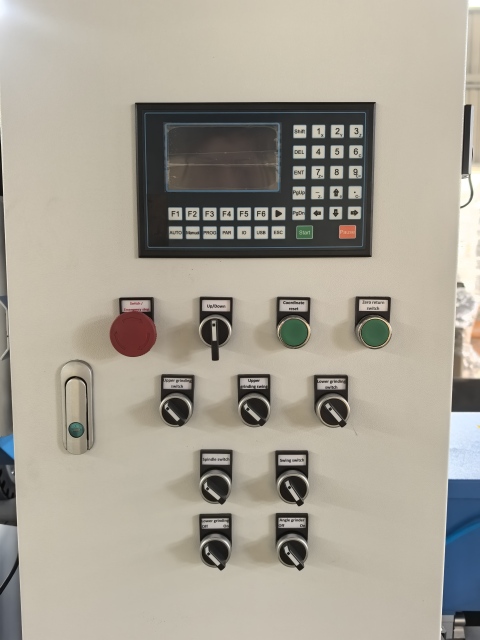

The machine is equipped with a self-developed multi-task controller, which controls the servo motor and cylinders to achieve automatic clamping and precise grinding-depth control. This ensures higher efficiency, better automation, and excellent weld seam consistency and finish quality.

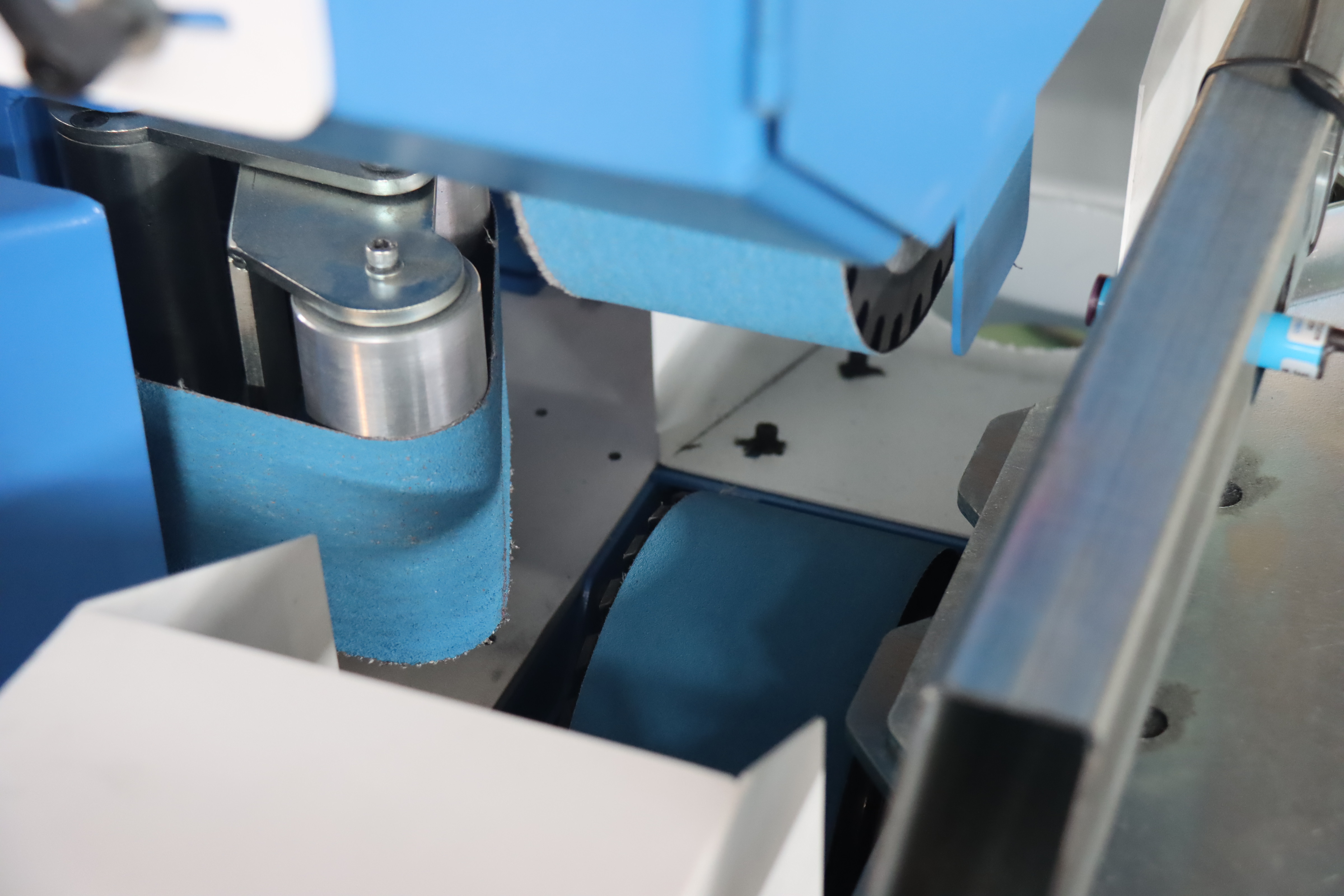

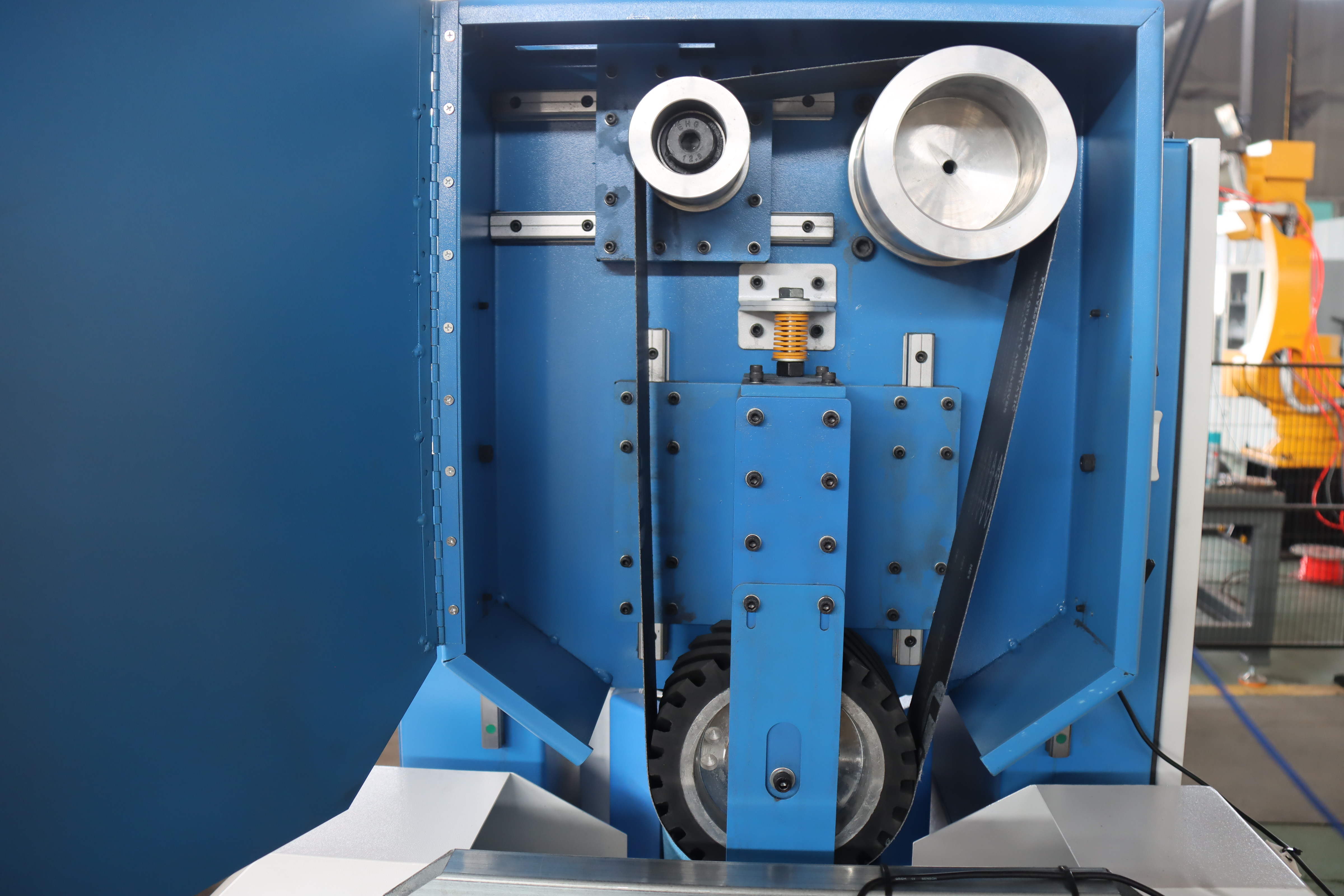

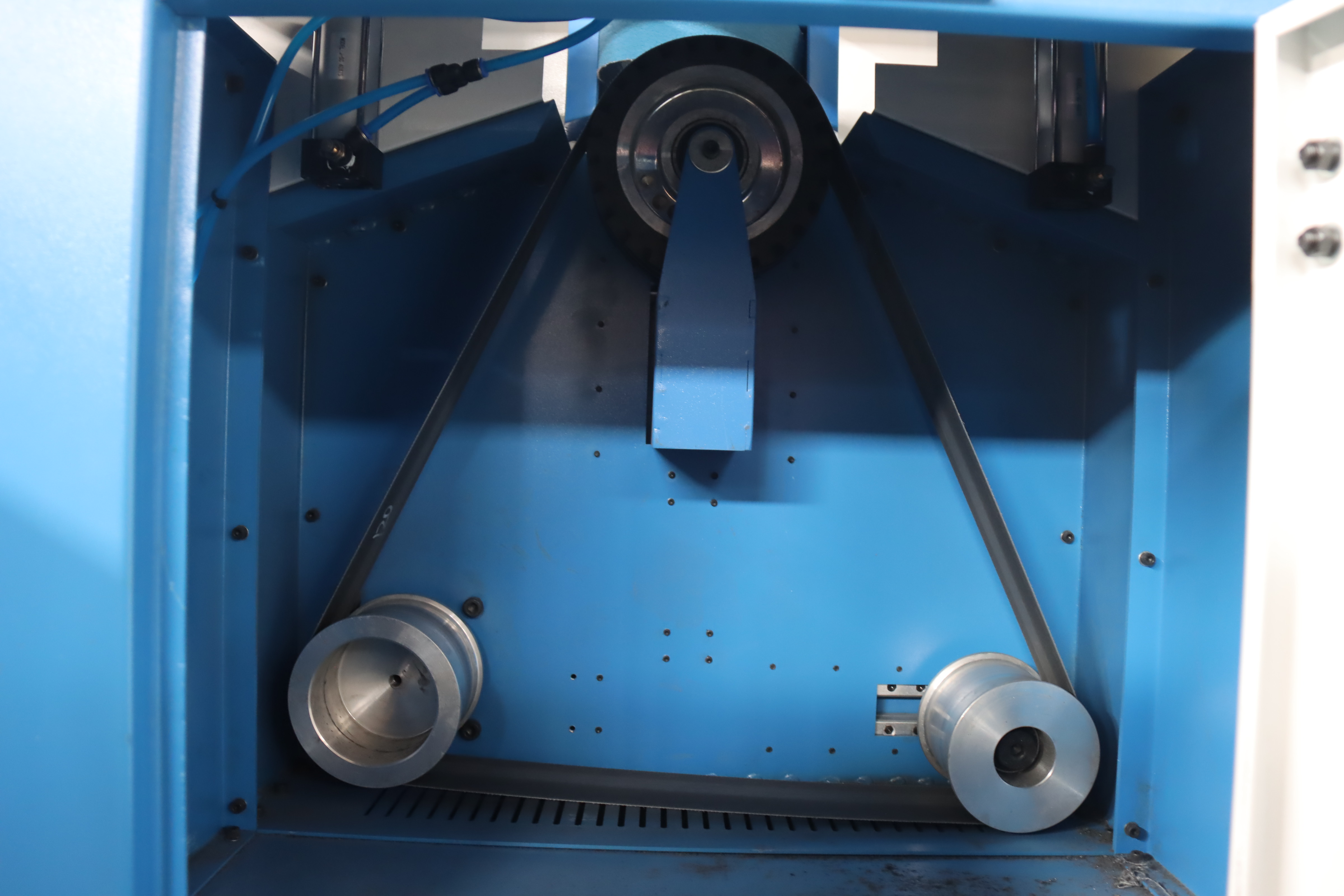

Flexible Three-Head Grinding System

The three grinding heads can be freely combined. They can operate all at once or in any paired configuration—such as top + side, top + bottom, or bottom + side. This greatly enhances processing flexibility to accommodate different weld seam positions.

Optional External Dust Collection

The machine can be equipped with an external dust collector connected to the enclosure’s dust extraction port, effectively removing grinding dust and reducing environmental pollution.

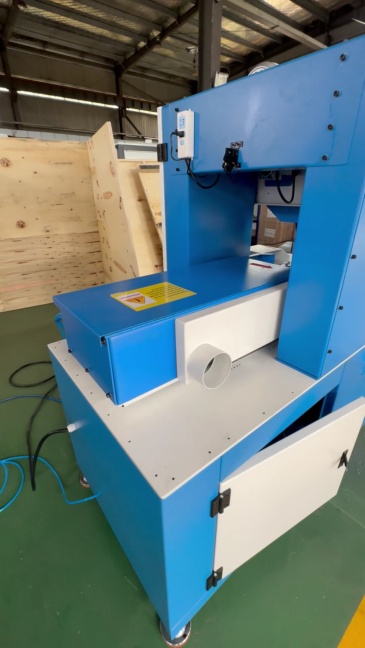

Video Introduction for your Reference:

https://www.instagram.com/epolishing/reel/DRgUBeVjO4d/

https://www.instagram.com/epolishing/reel/DLRDzhxs7ac/

https://www.instagram.com/epolishing/reel/DLE9cJ0syYV/

Performance Features

✅ Suitable for workpieces with a grinding width of ≤100 mm, capable of:
- Simultaneous grinding of top, bottom, and side weld seams
✅ Capable of grinding side edges and R-corners on workpieces with a height of ≤100 mm.
✅ Three grinding heads with customizable combinations to meet various welding positions and processing needs.

Applications

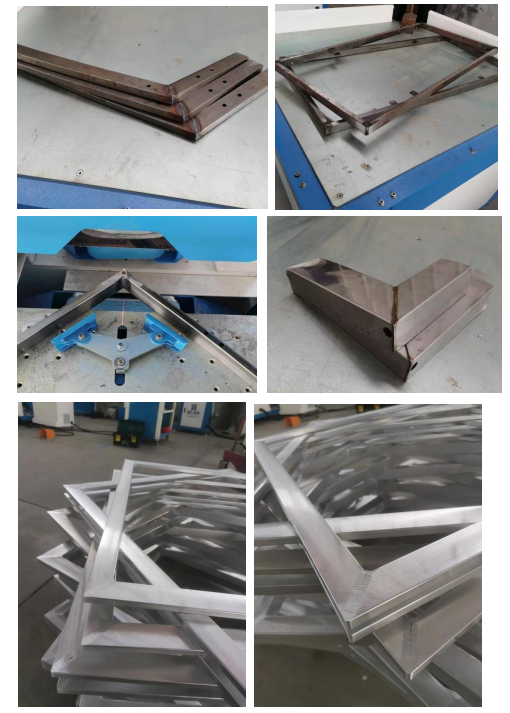

✔ Ideal for grinding weld seams at right-angle joints of various frame-structure products.
✔ Suitable for precise edge and corner finishing of doors, windows, kitchenware, aluminum profiles, and other metal components.
