Polishing machine for metal tank

Name: Polishing machine for metal tank
Brand: www.xydpolishing.com
Availability: InStock
Rating: 5 (1 reviews)

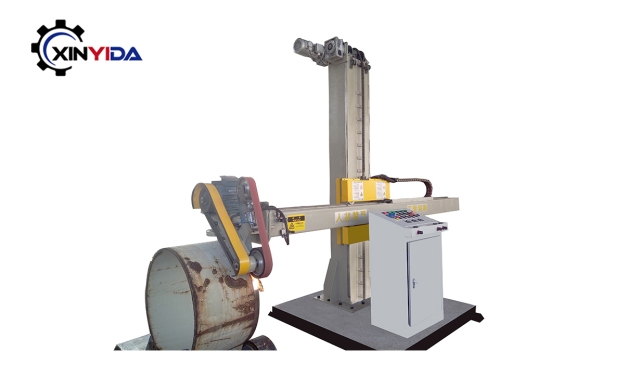

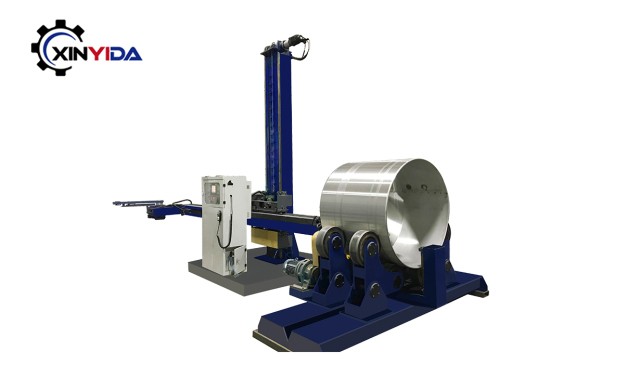

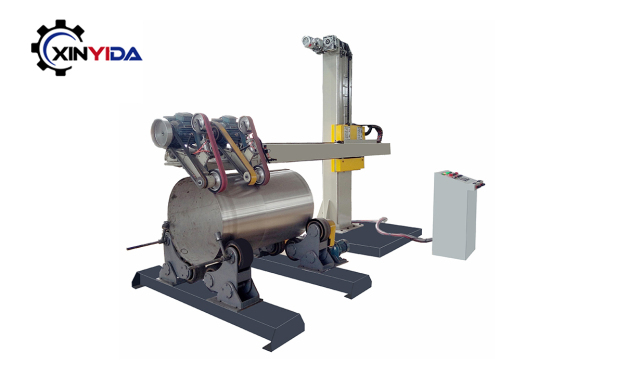

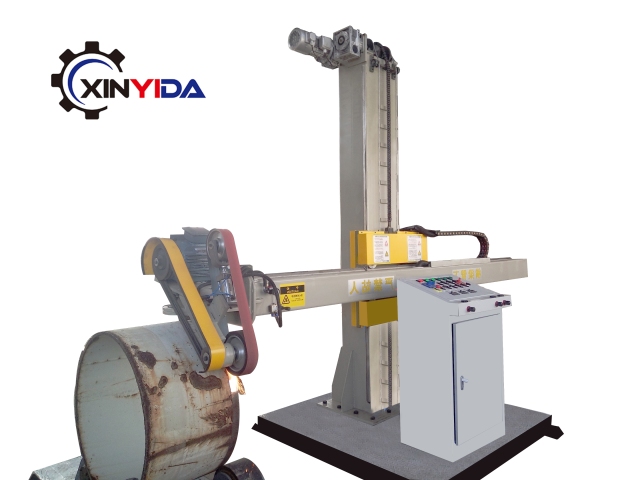

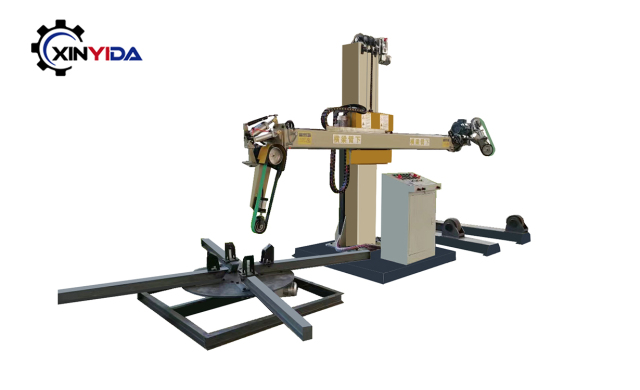

Stainless steel tank polishing machine designed by XINYIDA Polishing Machine. Use thousand impeller or cloth wheel, hemp wheel. The beam is adjusted up and down to adjust the position of the grinding head. The beam is fixed to the left and right, the base of the equipment is travelling. The motor is placed at back of machine. The inner joint of the beam is connected, the rear end has a cylinder hinge to realize the floating, and the front part is mounted with the grinding head to polish.

Get A Quote

Add to Quote List View Quote List

SPECIFICATION

Technical Specification

Model:XYD-1
Working mode: Semi-automatic
Beam move stroke 2500mm（Determine polishing length）
Polishing belt and wheel can be exchanged.
Polishing motor:4 or 5.5kw Brand: WANNA
VFD Brand:zhongchen/DELTA
Circuit part：Schneide

Polishing Ability

Tank diameter:300-3000mm
Tank length:5000mm
Tank weight:optional
Tank shell polishing only
Polishing tank shell inside and outside
Get matt,bright and mirror finish
Efficiency:10-12㎡/h

Product Description

🌎Stainless steel tank polishing machine designed by XINYIDA Polishing Machine.
🌏Suitable for Tank and Pressure Vessel φ800mm-3000mm inside and outside buffing.
Optional tank rolling table load range: 1-20 tons.
🌏Tank and Pressure Vessel Finishes.
Highly reflective surface obtained with the the combination of different abrasive belts. Minimal grit lines.
Used where product-contact surfaces are critical. RA Range: <0.2.
