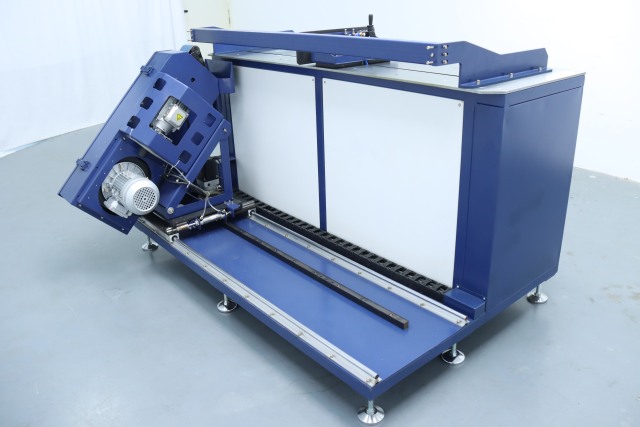

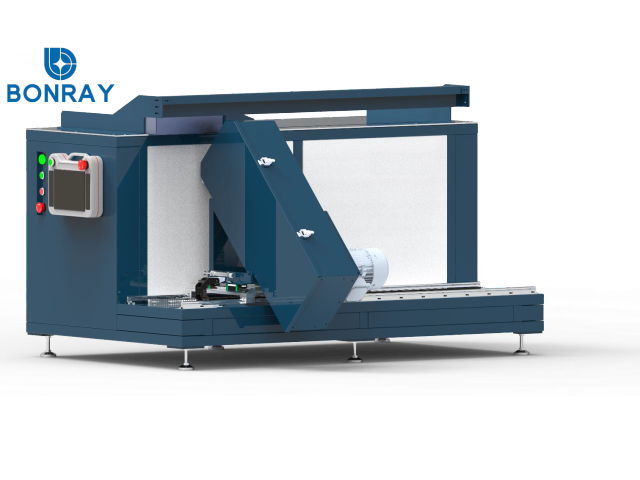

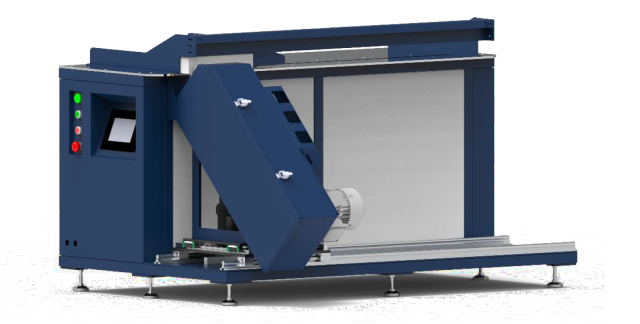

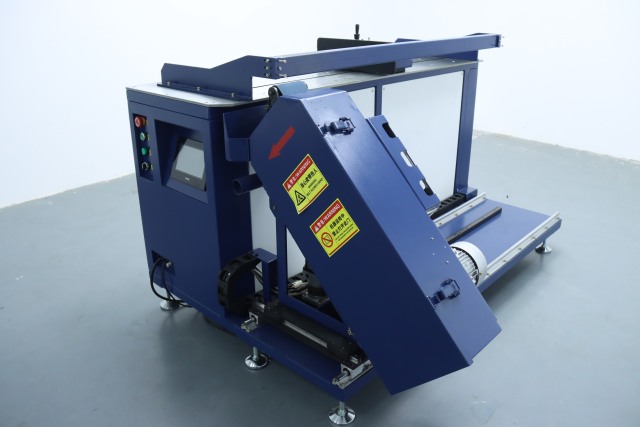

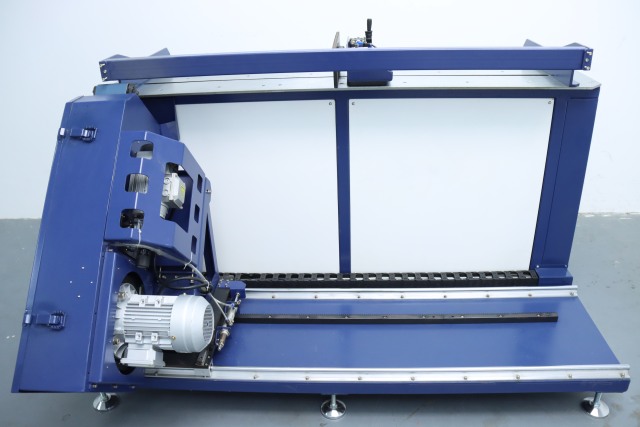

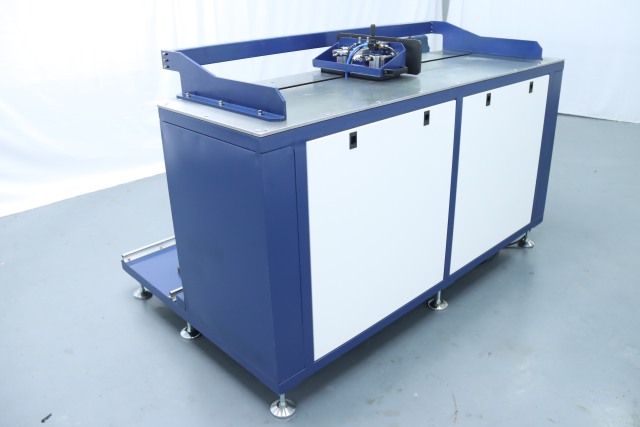

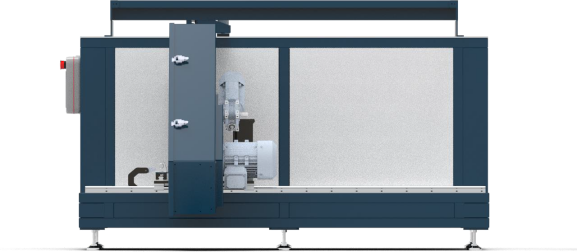

This machine is specifically designed for grinding welded edges and corners of large sheet metal enclosures. Featuring PLC control and servo motor drive systems, it offers fully adjustable lifting stroke and grinding speed settings.

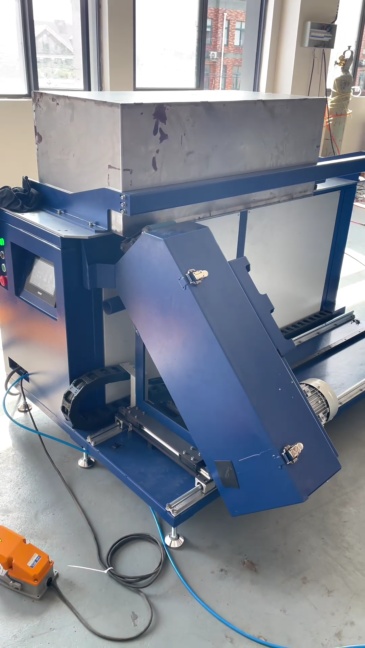

The grinding process requires only a single operator to position the workpiece at the fixed grinding location, enabling simple and efficient operation.
The machine effectively replaces manual grinding of workpiece edges, R-angles and small flat surfaces, essentially achieving fully automated grinding operations. It significantly improves upon traditional manual grinding efficiency while delivering superior and highly consistent grinding quality.
An optional external dust extraction system, when connected to the grinding machine's sheet metal guard exhaust port, effectively evacuates and collects grinding dust, substantially reducing harmful dust exposure to operators and minimizing environmental pollution.
1. Equipment features:
➢ Integrated body, small footprint, easy to move;
➢ Good human-machine interaction interface, grinding stroke, speed and number of times can be set, with high degree of intelligence;
➢ Professional grinding machine control system can ensure the grinding quality and make the grinding work simple and fast;

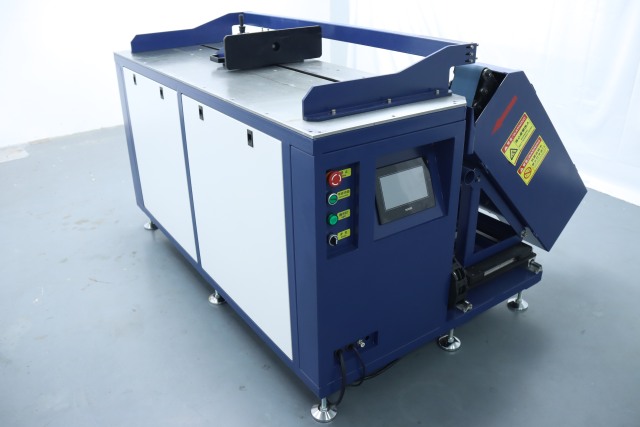

➢ Visual touch screen setting, simple and easy-to-understand operation interface, simple operation, and foot-operated start;
➢ High grinding precision, fast speed and stable quality;
➢ Equipment maintenance is simple;
➢ Suitable for grinding metal materials such as stainless steel, carbon steel, aluminum alloy, etc.
➢ R1-R18 can be polished
2. Equipment parameters：
| Model | BR-MJJ-1200mm | BR-MJJ-1500mm |
|
| Grinding effective stroke | 1200mm | 1500mm | |
| Run driver | Servo | ||
| Control method | PLC/Motion controller | ||
| Equipment size |
1640*1340*985 |
1940*1340*985 |
|
| Weight |
350kg |
420kg | |
| Device power supply | Three-phase, Five-wire ,AC380V±10% | ||

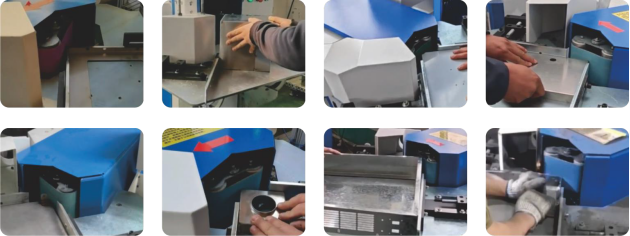

3. Equipment case display
4.Equipment operating environment:
| Serial number | Conditions/Requirements | special request |
| 1 | The ground is flat and there is no vibration source around. | |
| 2 | The environment is clean, corrosion-resistant, and free of high-concentration volatile gases; the temperature range is 10°C-40°C, and the humidity is less than 70%; | |
| 3 | Three-phase, Five-wire ,AC380V±10% |
