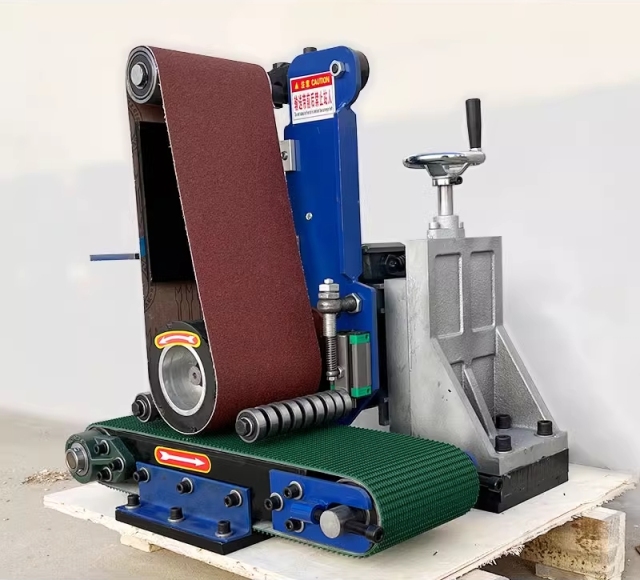

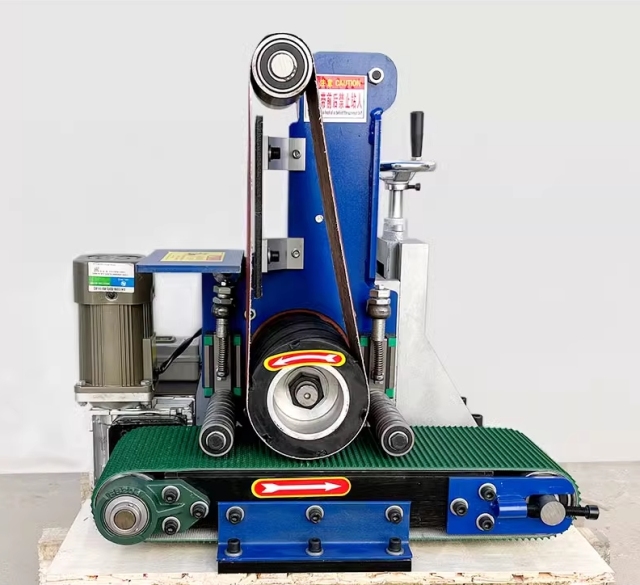

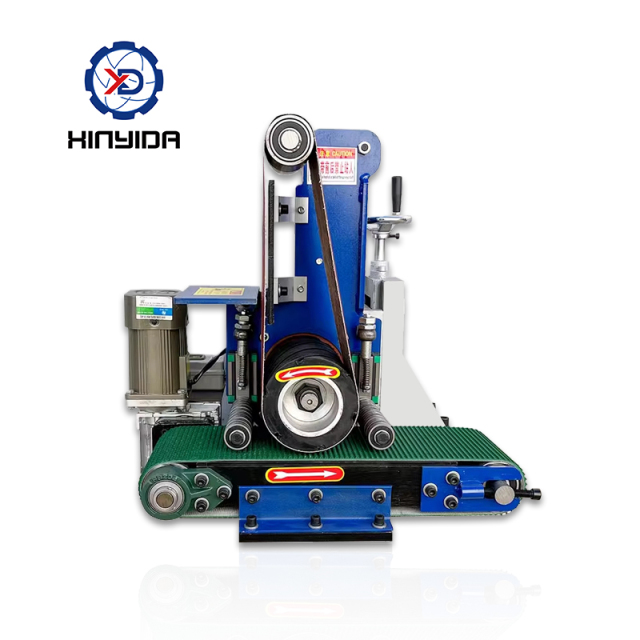

| JY-PB-100 Single station Flate bars grinding machine |
| Working capacity（mm) |
100*100 |
| No. belt stations |
1 |
| No. brush stations |
0 |
| Abrasive belt dimensions (mm) |
100 |
| Abrasive brush dimensions (mm) |
0 |
| Abrasive belts motor per head (kW) |
2.2 |
| Abrasive brush motor per head (kW) |
0 |
| Feeding motor (kW) |
0.12 |
| Power supply(V) |
380/220 |

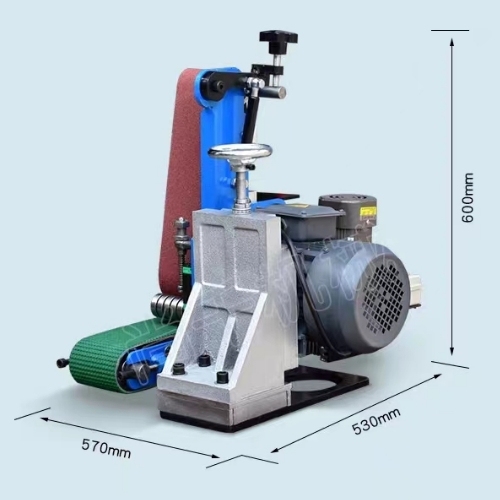

| Dimensions (mm) |
530*570*600 |
| Weight (kg) |
110 |

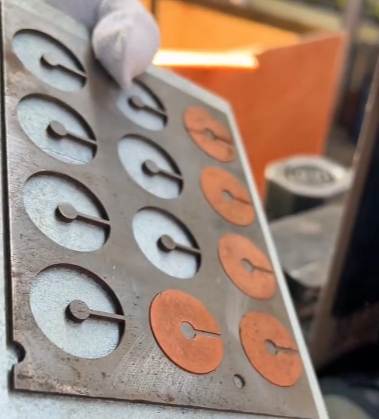

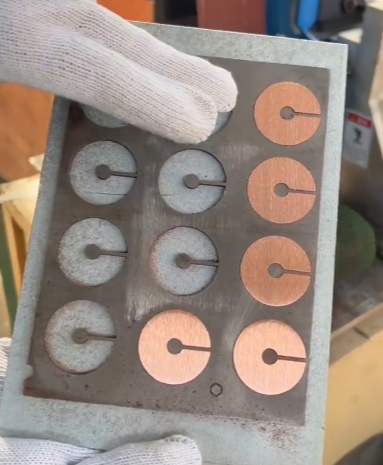

The flat surface polishing machine is primarily designed for flat surface finishing applications, including finishing and deburring of strips, as well as satin and bright finishing of square tubes and pipes.
No.4 and hairline finish:

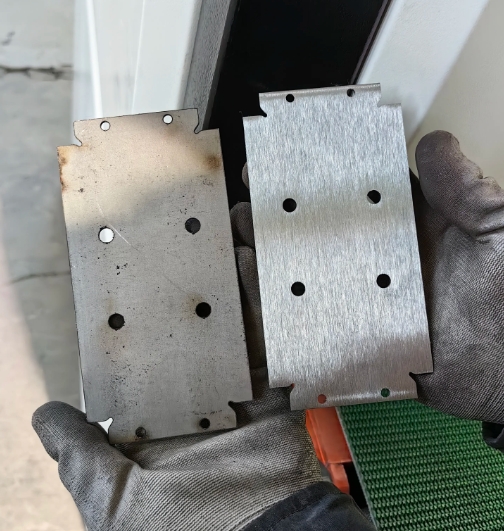

1. Utilize a sand belt to remove scratches and sand holes on the surface of the workpiece (No.4 finish).
2. Use a nylon wheel to achieve a brushed effect (hairline finish).
