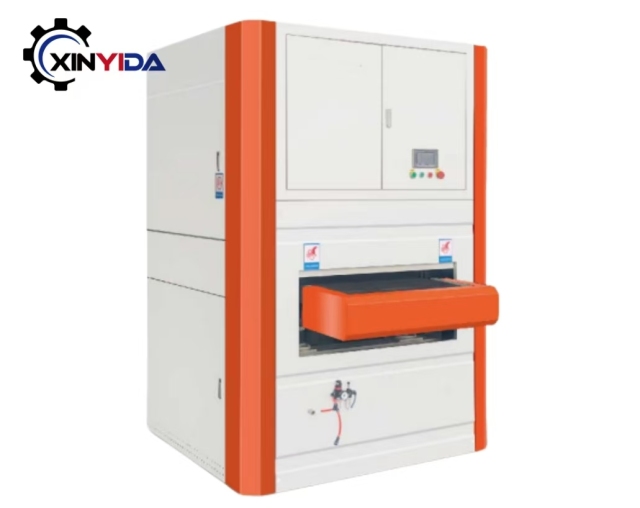

Dry Metal Sanding,Wire Drawing,Polishing Machine

No.ATS

ATS series is an abrasive belt mechanism that rotates at highspeed to remove burrs such as slag particles, scale, and largeflanges on the surface of the workpiece.

Abrasive belt: The polishing roller rotates at high speed to removeburrs and slag from the metal surface. lt is used for drawing stain-less steel, aluminum plates, and copper plates. Surface drawing,polishing, burr removal, and slag removal of laser cutting parts,stamping parts, water jet cutting, plasma cutting parts, and flamecutting parts.

  • Dry Metal Sanding,Wire Drawing,Polishing Machine,www.xydpolishing.com,Dry Metal Sanding,Wire Drawing,Polishing Machine

SPECIFICATION

Product Function Introduction:

Worktable Feeding and Adsorption Method:
Permanent Magnetic Adsorption: Minimum workpiece size: 220mm x 20mm
Vacuum Adsorption: Minimum workpiece size: ≥50mm x 50mm

Automatic Thickness Calibration:
Four-column synchronous lifting mechanism driven by a servo motor
Lifting precision: ±0.01mm

Control System:
Full PLC control with a touch screen for parameter adjustments
Abrasive Belt: The abrasive belt rotates at high speed, driven by grinding rollers, to perform: Brushing, Polishing, Slag removal, Oxide scale removal

Basic Technical Parameters:

  • Processing Widths: 600mm, 800mm, 1000mm, 1300mm, 1600mm
  • Conveying Method: Conveyor belt + rubber pressure roller clamping conveyor
  • Worktable Adsorption Method:
    Permanent Magnetic Adsorption: For workpieces ≥20mm x 20mm
    Vacuum Adsorption: For workpieces ≥50mm x 50mm
  • Automatic Thickness Calibration:
    Four-column synchronous lifting rod mechanism
    Digital screen settings with automatic positioning for precise thickness control

    This machine delivers efficient and accurate surface finishing, deburring, and polishing for a variety of metalwork applications, ensuring consistent quality and high productivity.
