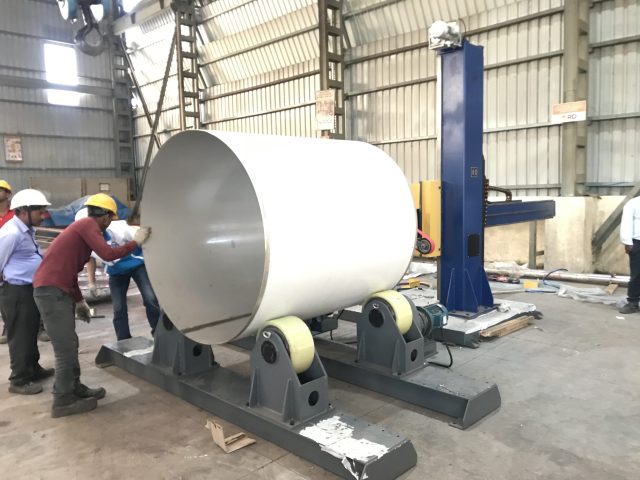

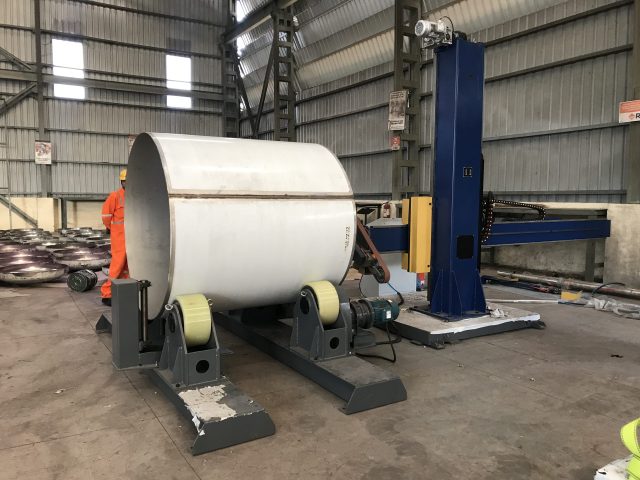

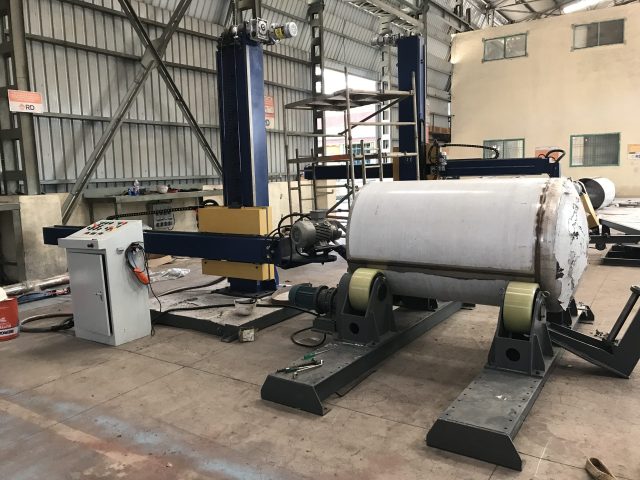

The equipment consists of a beam, a column, a base, a grinding head, a tank rolling table, a control cabinet and the like. Suitable for tank φ800mm-3000mm inside and outside polishing, optional tank rolling table load range: 1-20 tons.
This model can polish and grind for the different work piece of tank and grinding head through the different the grinding head of impeller then to meet the demand of polishing. The head polishing machine is extensive apply for the polishing of work piece in the range of medical, chemical, environmental purification, food and beverage, water filtration, etc.

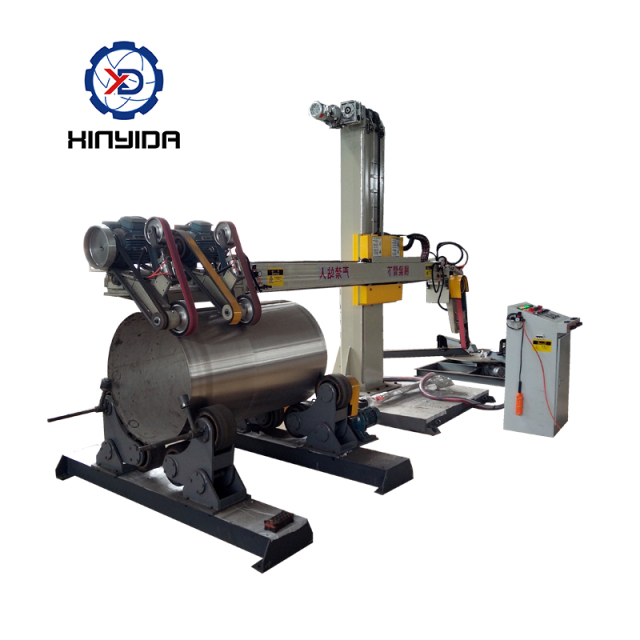

🌎Stainless steel tank polishing machine designed by XINYIDA Polishing Machine.
🌏Suitable for Tank and Pressure Vessel φ800mm-3000mm inside and outside buffing.
Optional tank rolling table load range: 1-20 tons.
🌏Tank and Pressure Vessel Finishes.
Highly reflective surface obtained with the the combination of different abrasive belts. Minimal grit lines.
Used where product-contact surfaces are critical. RA Range: <0.2.
The equipment consists of a beam, a column, a base, a grinding head, a tank rolling table, a control cabinet and the like. Suitable for tank φ800mm-3000mm inside and outside polishing, optional tank rolling table load range: 1-20 tons.
| Workpiece size | Diameter | 800mm-3000mm |
| Max. length | 2500mm | |
| Max. Weight | 20T |
| Machine dimension | L*W*H(in: mm): 3800*1600*3080 |
| Machine weight | 2500KGS |
| Input power | 8KW |
| Control system | PLC/CNC |
| Polishing materials | Abrasive Belt, Nylon Wheel, Cloth Wheel, Thousand Impeller, and etc. |
| Machining accuracy | surface roughness Ra≤0.4μm |
| Producing efficiency | 8m2/h |
